What Is Impedance Matching? A Practical Guide for RF Engineers

Why Impedance Matching Matters

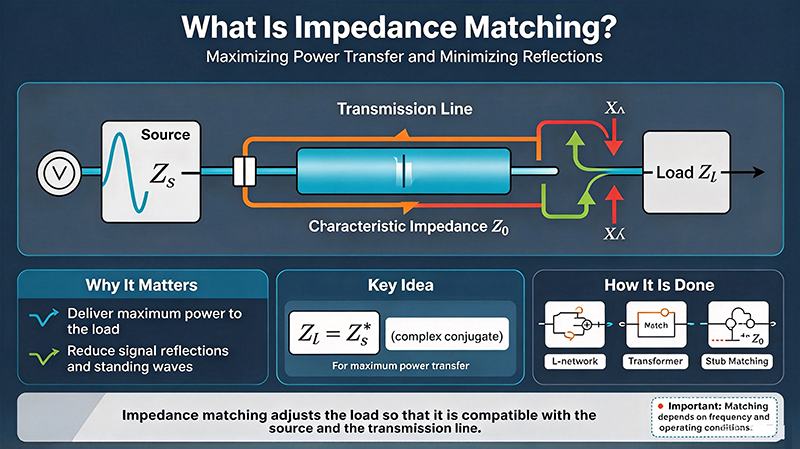

Impedance matching is the practice of making the output impedance of a source equal to the input impedance of a load — typically both 50 Ω in an RF system — to ensure maximum power transfer and minimum reflection. Without proper matching, you lose signal as reflected power, generate standing waves that can damage stages or cables, and degrade the noise figure of receivers.

Three engineering goals drive the need for matching. First, maximum power transfer: the maximum-power-transfer theorem says that for a fixed source, the load that absorbs the most power is one whose impedance is the complex conjugate of the source impedance. Second, minimum reflection: any discontinuity between source, transmission line, and load reflects a portion of the signal, which can interfere with the source or appear as crosstalk elsewhere. Third, optimum noise figure: the input impedance that minimizes a receiver's noise figure is rarely the same as the impedance that maximizes gain, and a matching network is required to balance the two.

In a 50 Ω system, 'matched' means both source and load present 50 Ω (or 75 Ω in video/cable TV). Real devices are rarely exactly 50 Ω — an antenna's impedance depends on its design, an amplifier's input impedance is set by its internal transistor, and a filter's impedance at band edges is reactive rather than resistive. The matching network's job is to transform these complex impedances to the system Z₀.

What Is the Characteristic Impedance?

Every transmission line — coax cable, microstrip trace, stripline, waveguide — has a characteristic impedance Z₀ that depends on its geometry and dielectric. For a coaxial cable with inner conductor diameter d, outer conductor diameter D, and dielectric constant εr, the characteristic impedance is:

Z₀ = (60 / √εr) · ln(D / d)

Standard 50 Ω coax (RG-58, RG-174, LMR-400, LMR-600) is used in RF test equipment and most wireless systems. 75 Ω coax (RG-6, RG-11) is used in cable TV, video, and some legacy antenna systems. 50 Ω was selected because it is a good compromise between power-handling (favors higher Z₀) and loss (favors lower Z₀) for air-dielectric coax.

Smith Chart Basics

The Smith chart is the graphical calculator of choice for impedance matching. It maps the complex reflection coefficient Γ (which always has magnitude ≤ 1) onto a polar grid that fits inside a unit circle. Impedance or admittance at any frequency can be plotted as a single point on the chart, and the movement caused by adding reactive components follows predictable arcs.

Two fundamental movements on the Smith chart: adding a series reactance moves the marker along a constant-resistance circle (because adding a series element changes the reactance but not the resistance). Adding a shunt susceptance moves the marker along a constant-conductance circle. These two movements are exactly what you need to design any matching network — you simply move the load's position to the chart's center through a sequence of series and shunt steps.

L-Network Matching

The simplest matching network is the L-network: a series reactive element and a shunt reactive element arranged in an L. With eight possible arrangements — series C or L combined with shunt C or L, in either series-shunt or shunt-series order — there is always an L-network that can match any complex load to Z₀ at a single frequency.

The bandwidth of an L-network is limited by the Q of the load. The required Q for a 50 Ω match to a complex load ZL = R + jX is:

Q = √(|RL| / 50 − 1) for RL > 50 Ω (high-pass L)

Q = √(50 / |RL| − 1) for RL < 50 Ω (low-pass L)

A high-Q load means a narrowband match. To broaden the bandwidth, use a multi-section network — T-network, pi-network, or a multi-section transformer.

Single-Stub Tuner

The single-stub tuner is the classic microstrip matching technique. Place a short length of transmission line (the stub) terminated in either an open or a short circuit, in shunt with the main transmission line at a specific distance from the load. The stub's susceptance cancels the load's susceptance, leaving a purely real 50 Ω at the connection point.

Designing a single-stub tuner requires two calculations: the distance from the load to the stub (where the load admittance has the correct real part), and the length of the stub (which provides the canceling susceptance). Both are easily read off the Smith chart using a procedure that takes only a few minutes.

Single-stub tuners are narrowband — they only match perfectly at one frequency. For broadband matching, use double-stub tuners, triple-stub tuners, or multi-section quarter-wave transformers.

Broadband Matching

For multi-octave bandwidth (e.g., DC to 6 GHz, or 2 to 18 GHz), single-section matching networks are inadequate. The classical solution is a multi-section quarter-wave transformer — a cascade of quarter-wave lines with progressively varying impedances, designed to approximate a Chebyshev or binomial taper.

A binomial multi-section transformer (N sections, each a quarter-wave long) gives the flattest passband response at the cost of a slower roll-off. A Chebyshev transformer has equal-amplitude ripples in the passband, set to a chosen maximum, and rolls off faster outside the band. The number of sections, the impedance ratios, and the ripple level are chosen based on the desired bandwidth and the maximum acceptable VSWR.

Tapered lines (continuous impedance variation along a transmission line) are the ultimate broadband solution. A Klopfenstein taper is mathematically optimal — it gives the shortest physical length for a given passband ripple. Tapered lines are difficult to build at high frequencies because they require fine geometric control.

Matching in Practice

Always measure the result with a vector network analyzer, not just calculate. Real components have parasitic inductance, capacitance, and resistance that shift the matching network's effective values by 10–20%. Connector transitions, PCB trace corners, and lead inductance all contribute reactance that must be accounted for. A matching network designed for a perfect 50 Ω load on paper but built with 1 nH of stray inductance at the series element will be off-resonance at higher frequencies.

Start broad, then tune. Build your first pass with calculated values, measure S2, then iterate by trimming component values or transmission line dimensions. Smith chart tuning in the lab is fast and effective — most RF engineers prefer it over pure simulation.

Frequently Asked Questions

Q: Can I match with just a resistor? A: Yes, but the match is dissipative — the resistor absorbs the reflected power as heat. A reactive (LC) match is lossless and preferred for almost all applications.

Q: Why 50 Ω and not 75 Ω? A: 50 Ω is a compromise between maximum power handling (favors higher Z₀ for air-dielectric coax) and minimum loss (favors lower Z₀). 75 Ω was chosen by cable TV because it minimizes loss for polyethylene-dielectric coax at the cost of ~50% lower power handling.

Q: What is conjugate matching? A: Conjugate matching means the load impedance equals the complex conjugate of the source impedance (Z_load = Z_source*). This gives maximum power transfer for a fixed source. It is the same as 50 Ω matching when both source and load are 50 Ω (real, so the conjugate is itself).

Q: How do I match an antenna? A: Measure its impedance with a VNA, then design a matching network at the antenna feed (L-network, gamma match, T-match, or hairpin). Tuning capacitors or trim capacitors are commonly used for fine adjustment after the network is built.

Engineering Notes from the Lab

Designing a matching network on paper is straightforward; building one that actually works requires accounting for parasitics that no textbook covers. Surface-mount inductors have parasitic capacitance that resonates at a few hundred MHz for small 0402 parts. Capacitors have parasitic inductance that resonates at similar frequencies. Connector transitions, PCB trace bends, and via stubs all add reactance that must be measured and tuned out. The matching network you designed for 2.4 GHz is rarely the matching network you measure at 2.4 GHz.

Tuning in the lab is faster than simulation iteration. Solder a first-pass network, measure S11 on the VNA, then read the position of the S11 minimum on the Smith chart. The minimum tells you exactly which direction to move the components — closer to the load (add series length), closer to the source (add shunt length), or both. A skilled RF engineer can match a complex load to 50 Ω in under an hour by walking the S11 minimum toward the chart center.

Case Study: PIFA Antenna Matching

A planar inverted-F antenna (PIFA) for a 2.4 GHz Wi-Fi module had a measured input impedance of 18 - j22 Ω — very far from 50 Ω. A direct L-network match would have required extreme component values and would have been very narrowband. The engineer instead repositioned the antenna's feed point slightly closer to the shorting pin, raising the real part of the impedance to 35 - j10 Ω. A small series inductor and shunt capacitor then brought the impedance to within 1.5:1 VSWR across the entire 2.4–2.5 GHz band. The lesson: when matching is hard, change the source impedance first.

Closing Thoughts

Matching is as much art as science. The Smith chart, the L-network, and the analytical formulas are the tools; experience, intuition, and iteration are the skills. The best RF engineers match antennas and amplifiers by feel, looking at the VNA's Smith chart and knowing exactly where to make the next adjustment. With practice, you can develop that intuition too.

Industry Applications and Use Cases

Across telecommunications, aerospace, defense, medical imaging, and automotive radar, the concepts covered in this guide show up in every RF design. From 5G base stations deploying massive MIMO antenna arrays with dozens of Wilkinson dividers per panel, to satellite payloads where every decibel of link budget determines the success of a multi-million-dollar mission, the principles remain the same: measure carefully, design with margin, and verify with the right instrument.

Medical applications add another wrinkle: MRI machines operate at the Larmor frequency of hydrogen (42.58 MHz/Tesla) and require extraordinarily low noise and high stability. Test systems for MRI receivers must minimize cable loss between the imaging coil and the low-noise preamplifier — often mounted directly on the coil housing — because every dB of loss degrades diagnostic image quality. The same matching, cabling, and LNA placement principles apply.

Automotive radar at 77 GHz is one of the fastest-growing RF domains. Each modern car may contain 5–10 mmWave radar units for adaptive cruise control, blind-spot detection, and automated emergency braking. These radar modules contain calibrated Wilkinson dividers, matched patch antennas, beam-steering phase shifters, and integrated FMCW synthesizers — all built on low-cost PCB substrates and tested in production at volumes exceeding 100 million per year. The principles taught in this guide are what make that volume manufacturing possible.

Advanced Design Considerations

Beyond the basics covered above, several advanced topics deserve attention as your designs mature. Multi-physics simulation — coupling electromagnetic, mechanical, and thermal effects in a single simulation — is increasingly important at mmWave frequencies where small dimensional changes from thermal expansion can shift the operating frequency. Tools like ANSYS HFSS, CST Studio Suite, and Cadence Clarity now include multi-physics capabilities that integrate structural and thermal solvers with the RF simulator.

Machine learning is beginning to appear in RF design. Surrogate models trained on simulation data can predict S-parameters 1000× faster than running the full EM simulation, enabling design space exploration that was previously impossible. Tools like Google Brain's RF antenna design work and Cadence's Cerebrus are early examples of where the field is heading. For now, these tools augment rather than replace the engineer's judgment — they accelerate iteration but the final design still needs to be understood, verified, and signed off by an experienced engineer.

Standards, Compliance, and Regulation

Every RF system must comply with applicable regulatory standards. In the United States, Part 15 of the FCC rules governs intentional radiators and unintentional emissions. The European Union's Radio Equipment Directive (RED) does similar work. Specific applications have additional standards: ETSI EN 301 893 for 5 GHz Wi-Fi, ETSI EN 302 500 for UWB, and many others. Military and aerospace applications have additional standards: MIL-STD-461 for EMI, MIL-STD-810 for environmental, and MIL-STD-1540 for product assurance.

Compliance testing is a discipline of its own. Compliance test labs use specialized instruments (spectrum analyzers with quasi-peak detectors, EMI receivers calibrated to CISPR standards) and follow specific procedures. The measurement uncertainty of compliance tests is typically ±3 to ±6 dB — much wider than production test measurements, but required for regulatory acceptance. Plan for compliance testing early in your design cycle; retrofitting a product to meet EMI requirements after the design is finalized is expensive and time-consuming.

Career and Skill Development in RF Engineering

RF engineering is a deep specialty with strong demand and excellent compensation. The barrier to entry is high: unlike software, you cannot iterate in seconds, and the cost of mistakes is paid in physical hardware. Yet for engineers who take the time to develop intuition, RF offers some of the most satisfying engineering work available — every component choice has a measurable effect, and every measurement reveals something about the physical world.

For those starting out, build a home lab. Even a modest setup with a cheap SDR (RTL-SDR, HackRF, or Airspy), a few antennas, and some cables will let you explore the RF spectrum in ways that no simulator can. Add a low-end spectrum analyzer (Rigexpert, TinySA) when you can afford it, and a used VNA from eBay when the budget allows. The hands-on experience with real signals, real cables, and real instruments is what builds intuition that no textbook can provide.

Stay current by reading industry publications (Microwave Journal, RF Globalnet, Microwaves & RF), attending conferences (IMS, EuMW, IEEE MTT-S), and joining professional communities (IEEE MTT-S, ACM SIGCOMM for networking RF). The field evolves rapidly — mmWave 5G, satellite internet, and automotive radar were niche markets 10 years ago and are now mainstream. The engineers who built those markets started by mastering exactly the fundamentals covered in this article.
